Engineering Digital Trust on Android

Introduction: the zero-trust mobile paradigm

The mobile device has transitioned from a mere communication tool into a primary surrogate for human identity, serving as a personal digital wallet for critical identity and access documents. This consolidation necessitates a departure from traditional perimeter-based security in favor of a “Zero Trust” architecture, wherein no signal –whether originating from the network, the operating system, or an application – is implicitly trusted.

Establishing digital trust on Android requires orchestrating four specific domains:

1. Device integrity: (Play Integrity API)

2. User identity: (Credential Manager/FIDO2)

3. Hardware security: (Keystore/StrongBox)

4. Verifiable credentials: (Identity Credential/ISO 18013-5)

This article explores how digital trust can be engineered within the modern Android ecosystem to ensure robust protection for both applications and users.

Domain I: device and application integrity

The Play Integrity API

Backend servers cannot implicitly trust client requests due to rooting, hooking frameworks, and emulator farms. The Play Integrity API replaces SafetyNet, offering a tripartite security model involving the app, Play Services, and the developer backend.

Request architecture

The system prevents replay attacks and tampering through a strict challenge-response mechanism.

Key strategies:

• Standard requests: Optimized for high-frequency use (e.g., loading game levels). These use cached results for low latency but may be slightly less fresh.
• Classic requests: Reserved for high-value actions (e.g., financial transfers). These force a fresh device evaluation but consume more battery.
• Nonce implementation (anti-replay): To prevent replay attacks, a unique nonce must be generated on the server.

Best Practice is to combine a high-entropy random value with a hash of the transaction data.

Client-side implementation (pseudo-code)

The implementation separates “warming up” the provider from the actual token generation to mask latency.

Server-side verification

Verification must occur on the server. The backend decrypts the token via Google servers to analyze three signal groups:

1. App integrity: Confirms the package name and PLAY_RECOGNIZED certificate.

2. Device integrity:

• MEETS_STRONG_INTEGRITY: Hardware-backed (TEE/StrongBox), locked bootloader.
• MEETS_DEVICE_INTEGRITY: Android-compatible OS, but may lack hardware enforcement.
• MEETS_BASIC_INTEGRITY: Recognizable Android version, often failing on rooted devices.

3. Account details: Validates LICENSED status (Google Play install vs. sideload).

Tiered enforcement strategy: Instead of a binary block, use tiered logic: allow full access for Strong Integrity, restricted access for Device Integrity, and block or read-only mode for Basic Integrity.

Domain II: user identity and passwordless authentication

FIDO2 and Credential Manager

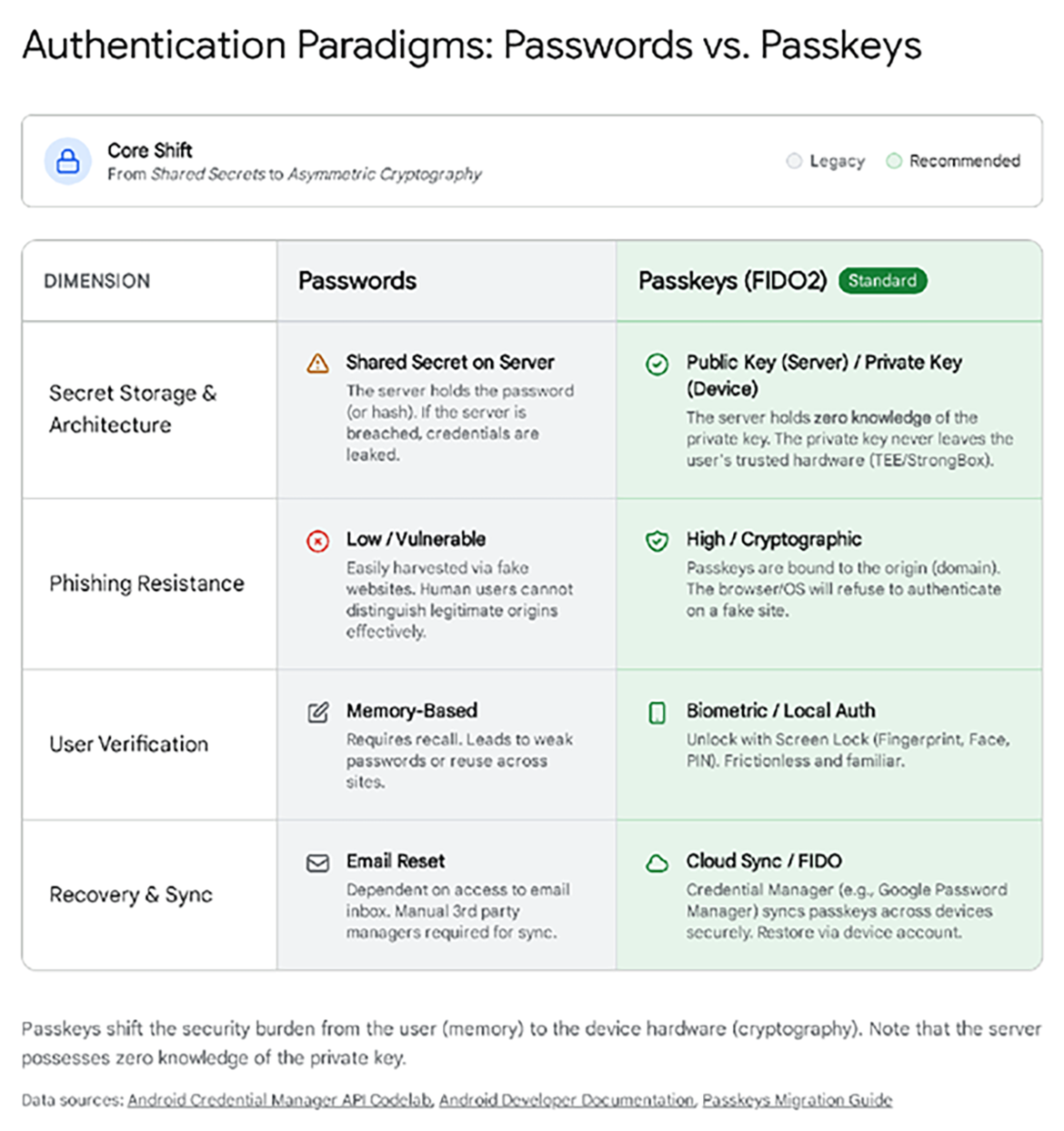

The industry is moving away from shared secrets (passwords) toward asymmetric cryptography (Passkeys/FIDO2).

The private key remains in the device’s Trusted Execution Environment (TEE) or StrongBox (a hardware-backed secure environment). The server holds only the public key. This renders server-side leaks useless for impersonation.

The Credential Manager API, introduced in Android 14, unifies passkeys, saved passwords, and federated login into a single system UI.

High-assurance transaction authentication

For critical actions (e.g., payments), simple login is insufficient. Developers must use crypto-backed biometrics.

• Mechanism: The app creates a cryptographic key in Android Keystore with setUserAuthenticationRequired(true).
• Security: The key is locked in hardware and can only be unlocked when the secure biometric hardware (Class 3 sensors) confirms user presence.

Domain III: hardware-backed key storage

Silicon root of trust

The Android Keystore System isolates cryptographic keys from the application process.

• TEE (Trusted Execution Environment): A standard secure area.
• StrongBox (KeyMint): This is the highest security level. It runs on a dedicated secure element (e.g., Google Titan M) with its own CPU and storage, resistant to physical side-channel attacks.

Hardware key attestation

To trust a key, the backend must verify that it was generated in secure hardware rather than software.

• The chain: The device generates an X.509 certificate chain rooted in the Google Hardware Attestation Root CA.
• The extension: The leaf certificate contains a signed extension (Object Identifier (OID) 1.3.6.1.4.1.11129.2.1.17) confirming the key’s properties, such as attestationSecurityLevel (TEE or StrongBox) and the bootloader status.

Server validation checklist:

1. Verify the root matches Google’s published roots.
2. Verify the chain of trust (signatures).
3. Parse the extension to confirm TEE/StrongBox storage.
4. Verify the attestationChallenge matches the server-generated challenge (anti-replay).

Domain IV: verifiable credentials (ISO 18013-5)

Mobile driver’s licenses (mDL)

Android supports the digitization of physical IDs via the Identity Credential API and the ISO 18013-5 standard. A core feature is selective disclosure. For example, a user can prove they are “over 18” without revealing their exact birth date and address.

Offline presentation flow

Unlike web protocols, mDL works offline via direct device-to-device communication (NFC/QR).

1. Engagement: Devices connect via NFC/QR.

2. Request: Verifier asks for specific data elements (e.g., age_over_18).

3. Consent: Android System UI prompts the user (cannot be bypassed).

Response: The device signs data with the Credential Key and transmits it via Concise Binary Object Representation (CBOR).

Verifier implementation

Verifier apps use CredentialManager with GetDigitalCredentialOption to request ID data.

Note: The backend (or verifier app) must cryptographically verify the Issuer’s signature (Mso) on the CBOR data to ensure authenticity. While omitted for brevity, both nonce verification and device authentication are mandatory components of the verification process to mitigate replay attacks and identity cloning, respectively.

Domain V: network and infrastructure trust

Securing the transport layer

To prevent Man-in-the-Middle (MitM) attacks, developers should use Certificate Pinning via the Network Security Configuration XML. This restricts the app to trust only specific certificate hashes rather than the entire system trust store.

Defense in depth: the “Swiss Cheese” model

Robust architecture relies on overlapping defense layers.

• Layer 1 (Perimeter): Play Integrity filters mass-scale attacks and emulators.
• Layer 2 (Data): Keystore/StrongBox protects cryptographic material from extraction.
• Layer 3 (User): Biometrics ensures physical human presence.
• Layer 4 (Logic): Backend Verification serves as the ultimate source of truth.

Conclusion

Digital trust on Android is no longer achieved through obfuscation or root detection scripts. It is engineered through standardized OS-level APIs: Play Integrity for environment, Credential Manager for identity, Hardware Keystore for data, and Identity Credential for documents. By adhering to the principle that “verification happens on the server,” developers can build applications resilient to modern adversarial realities.
