Polarity Management in Co-Packaged Optics: Why It Matters and How to Get It Right
Hidden risks in next gen data centers: Descartes Boris Waffo Kamdem of Corning on why small polarity errors lead to big costs.
@Image generated using OpenAI
One of the groundbreaking innovations responding to the requirement for greater speed and power in today’s competitive data center and digital infrastructure space is CPO (Co-Packaged Optics), where optical engines are integrated directly into the switch ASICs1. This design eliminates the need for traditional pluggable optics cages and significantly shortens electrical trace lengths, improving both performance and efficiency. However, it does not eliminate the need for polarity management.
As data centers evolve to meet the demands of cloud computing, AI, and ultra-fast transactions, CPO is emerging as a transformative technology enabling faster and more energy-efficient data transmission Yet, this advancement presents a critical challenge: ensuring accurate fiber optic polarity. Each transmission lane requires precise Transmitter Tx to Receiver Rx mapping across As data centers evolve to meet the demands of cloud computing, AI, and ultra-fast transactions, CPO is emerging as a transformative technology enabling faster and more energy-efficient data transmission Yet, this advancement presents a critical challenge: ensuring accurate fiber optic polarity. Each transmission lane requires precise Transmitter Tx to Receiver Rx mapping across multi-fiber ribbon connectors (such as MPO (Multi-Fiber Push-On) / MTP (Mechanical Transfer Push-On)) or duplex links to maintain signal integrity and avoid costly downtime2.

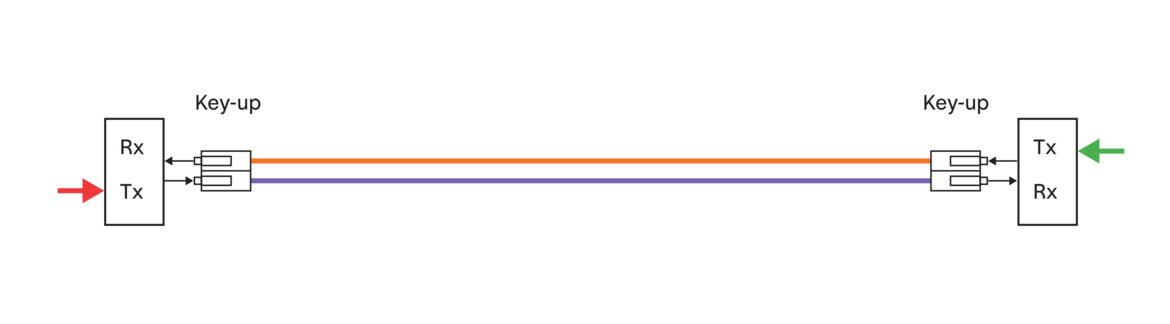

Fig. 1: Transmitter Tx to Receiver Rx mapping
Why polarity is critical in CPO
Polarity ensures that each Transmitter Tx is properly connected to a Receiver Rx in a fiber optic system. In a traditional fiber optic link, there are two fibers: one to send data Tx and one to receive it Rx. If those lines are accidentally reversed, with Tx connected instead of Rx, the system can’t transmit data essentially a one-way conversation with no receiver. In CPO, polarity becomes a much bigger challenge. Unlike traditional fiber systems where you can simply unplug and swap cables to fix a mistake, CPO relies on thousands of microscopic optical paths built directly into a chip. These tiny waveguides must be aligned with the electronic parts perfectly from the start. If the transmitter and receiver paths are mismatched during design or manufacturing, there’s no way to fix it later, leading to a non-functional chip and a system that won’t work.
Real-world impact: Polarity mistakes implications
Polarity mistakes aren’t just hypothetical – they can cause major real-life consequences. In data centers, especially those operated by hyperscale cloud providers, even a minute of network downtime can cost more than €260,000. If a CPO module has a polarity error –meaning the transmit Tx and receive Rx paths are misaligned – it won’t just perform poorly; it won’t work at all. That failed module could take down an entire server rack, interrupting services for millions of users. Fixing the problem involves emergency engineering, shipping replacement parts, and paying steep penalties under Service-Level Agreements (SLAs) contracts that guarantee uptime. Beyond the financial impact, the company’s reputation can suffer long-term damage3.
Critical connections: Why fiber polarity is essential across industries
Beyond data centers, polarity errors can disrupt mission-critical systems in healthcare, finance, and telecom. For example, hospitals rely on real-time data for life-saving decisions. A polarity failure in a CPO-based switch could halt the transfer of high-resolution medical images, interrupt AI diagnostics, and compromise patient monitoring in ICUs. In these cases, the impact goes beyond financial loss; it can affect lives. Industry standards such as TIA, ISO, and CPR ensure fiber networks remain reliable and safe. That’s why industry standards such as TIA (Telecommunications Industry Association), ISO (International Organization for Standardization), and CPR (Construction Products Regulation) are essential for building fiber networks that are reliable, scalable, and safe [ISO/IEC 11801-5, 20215].
Across sectors, polarity errors can severely compromise operational continuity. Here are some examples:
- Data centers: A polarity error during installation can take down entire network segments, affecting cloud services and business continuity.
- Healthcare: Misaligned fibers can interrupt access to electronic health records, live monitoring, and telemedicine platforms.
- Finance: High-speed trading and secure transactions depend on flawless fiber links; any error can have major financial consequences.
- Telecom: Service providers rely on correct polarity for uninterrupted voice and data services.
Automated testing during production
Before any CPO unit leaves the factory, it undergoes rigorous automated testing. This process verifies that each transmitter is properly aligned with a receiver across thousands of tiny optical channels. By catching misalignments early, manufacturers can prevent costly issues from arising once the product is deployed.
How polarity management works: Methods explained and simplified12
To address polarity challenges, the latest standards (TIA-568.3-E) define several polarity management methods for duplex and parallel fiber links. Here’s a simplified overview:
Polarity methods
(Methods for patch cords and trunk cables as per TIA-568.3-E)
| Method | Trunk Cable Type | Adapter Type | Fiber Transition | Patch Cord Type | Typical Use Case | Key Benefit |
| A | Type-A:1-1 | Type-A (KU-KD) | Type-A | A-to-B & A-to-A | Duplex, migration | Straight trunk, easy documentation |
| B | Type-B:1-1 | Type-B (KU-KU) | Type-A | Both A-to-B | Duplex, parallel | Single patch cord type, installer-friendly |
| C | Type-C:1-1 | Type-A (KU-KD) | Type-A | Both A-to-B | Duplex | Pair-flipped trunk, simple patching |
| U1 | Type-B:1-1 | Type-A (KU-KD) | Type-U1 | Both A-to-B | Multiple duplex | Identical modules, streamlined install |
| U2 | Type-B:1-1 | Type-B (KU-KU) | Type-U2 | Both A-to-B | Multiple duplex | Identical modules, streamlined install |
Table 1: Polarity method
*KU = Key-Up, KD = Key-Down
Clarification: The polarity methods in Table 1 are defined by TIA-568.3-E for patch cords and trunk cables. They do not cover internal CPO-to-faceplate connectivity, which requires separate design considerations and manufacturer-specific guidelines.
Citation: TIA-568.3-E, Optical Fiber Cabling and Components Standard, Telecommunications Industry Association, Sept. 2022.
Practical example: Repairing a damaged LC Uniboot on a Corning EDGE trunk
Let’s explore a real-life scenario: replacing a damaged LC Uniboot leg on a Corning EDGE Trunk while ensuring correct polarity and preventing Tx/Rx crossover or signal loss.
Before you start: Tools & checks
- Testing Equipment: OTDR or laser source plus power meter (or VFL for visual tracing) continuity tester.
- Preparation Tools: Marker, tape, gloves, cleaning fluid, prep tools, fiber cleaver, fusion splicer.
- Replacement Materials: LC Uniboot patch cord (cut in half), or pre-terminated LC duplex/simplex pigtails.
- Documentation: Document and label each end before cutting.

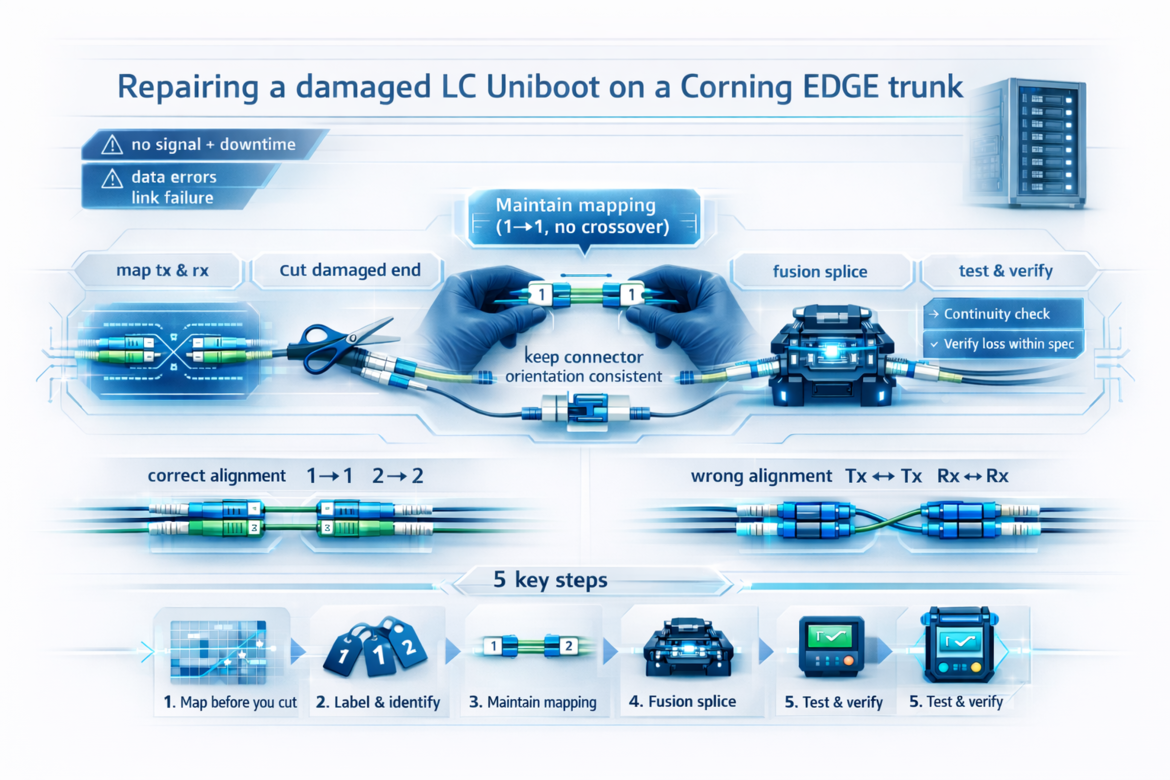

Fig.2: Repairing a damaged LC Uniboot on a Corning EDGE trunk © dotmagazine, based on “Polarity Management in Co-Packaged Optics,” Corning
Step-by-step repair (Maintaining AB polarity, “straight” method)
1. Identify and mark fibers
- Use a VFL or continuity tester to map the trunk fibers to connector ports at each end (e.g., "fiber 1 = port A site").
- Note the LC Uniboot orientation and mark physical sides for reference.
2. Locate the damage
- Pinpoint the damaged section (VFL/OTDR), cut and remove it, leaving enough length for splicing.
3. Prepare patch cord
- If using a cut LC Uniboot, identify which strand will be Tx and Rx. Separate and prepare fibers for fusion.
4. Match fibers for polarity
- Ensure no crossover occurs. For example, if “trunk, fiber 1 = port A-Tx,” splice the corresponding patch fiber to “trunk, fiber 1.” Use markings and visual cues to maintain correct alignment.
5. Fusion splice
- Clean, cleave, and splice the trunk and patch fibers in a straight-through configuration (e.g., 1 → 1, 2 → 2).
- Protect the splice with a sleeve and let it cool properly.
6. Reassemble the connector
- Reattach the patch cord or LC Uniboot sheath. Ensure the clip/latch orientation is consistent to prevent accidental inversion.
7. Test post-splice
- Measure insertion loss (<0.3–0.5 dB for good fusion).
- Verify polarity by sending light from port A to port B and vice versa, ensuring proper Tx → Rx continuity. Use a loopback adapter or polarity tester if necessary.
Migration and troubleshooting tips
- Always document your polarity method for future maintenance.
- Match existing methods when expanding systems—mixing methods can cause failures.
- Check adapter keying and transition type before ordering new components. Use identical modules and patch cords (U1/U2) to simplify installation and reduce errors.
Conclusion
For CPO to effectively support the surging demands of AI and cloud computing, managing polarity correctly is not optional – it’s essential. Even a single error can disrupt entire systems, potentially leading to costly downtime and significant data and financial losses. That’s why polarity management isn’t just a feature; it’s a foundational part of technology, supporting the AI-driven data centers. Organizations that master this by following standards, using streamlined methods, and focusing on practical impact will ensure reliable, scalable, and future-flexible fiber optic networks and, therefore, will be the ones driving the next generation of connectivity.
References
1 TIA-568.3-E, "Optical Fiber Cabling and Components Standard," Telecommunications Industry Association, Sept. 2022.
2 Siemon Company, "TIA Introduces New Polarity Methods," 2022. [Online]. Available: https://www.siemon.com/en/ansi-tia-introduces-new-polarity-methods
3 Belden, "9 Simple Rules for Achieving Fiber Polarity," 2021. [Online]. Available: https://www.belden.com/blog/9-Simple-Rules-for-Achieving-Fiber-Polarity
4 AFL Hyperscale, "The Importance of Validating Polarity in the Data Center," 2023. [Online]. Available: https://www.aflhyperscale.com/articles/the-important-of-validating-polarity-in-the-data-center
